Product Details
- \r\n
- \r\n\r\n\r\n

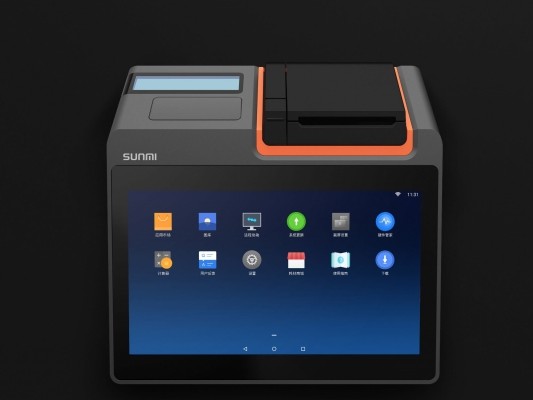

Display
\r\nCapacitive multitouch
\r\nMain Display:
\r\n11.6\" FHD 1920*1080
\r\nSecondary Display:
\r\nLED Display,FSTN ,128*40
\r\n \r\n - \r\n\r\n\r\n
Camera
\r\n0.3MP
\r\nSupports 1D/2D barcode recognition (Config 2)
\r\n \r\n - \r\n\r\n\r\n

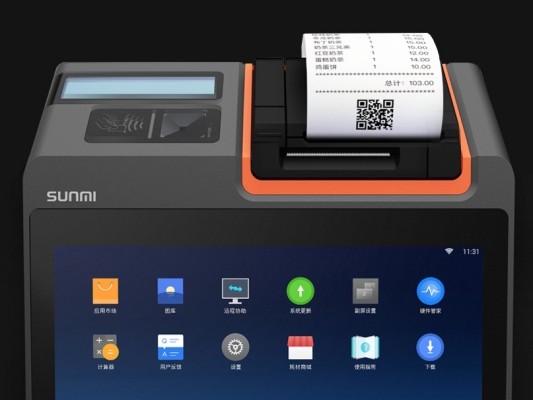

Printer
\r\nBuilt-in 80mm thermal printer
\r\nAuto cutter: equipped
\r\nPrint speed: 160mm/s
\r\nService life: 100Km, Paper roll: Φ60mm
\r\n \r\n - \r\n\r\n\r\n
NFC Card Reader
\r\nSupports Type A&B card,
\r\nMifare card, Felica card
\r\nISO/ICE 14443 compliant
\r\n \r\n - \r\n\r\n\r\n
Scanner
\r\nSupports 1D/2D barcode recognition (Config 2)
\r\n \r\n - \r\n\r\n\r\n
Speaker
\r\n1* 1.2W
\r\n \r\n - \r\n\r\n\r\n
SIM Card Slot
\r\n1* MINI SIM (Config 2)
\r\n \r\n - \r\n\r\n\r\n
Network
\r\n2G & 3G & 4G (Config 2)
\r\n \r\n - \r\n\r\n\r\n
Wi-Fi
\r\n2.4GHz
\r\nSupports IEEE 802.11 b/g/n
\r\n \r\n - \r\n\r\n\r\n
Bluetooth
\r\nSupports Bluetooth 2.1/3.0/4.2
\r\nSupports BLE
\r\n \r\n - \r\n\r\n\r\n
Wired Network
\r\nLAN 100M
\r\n \r\n - \r\n\r\n\r\n
Button
\r\n1* Power (lock screen) button
\r\n2* Volume (+/-) button
\r\n \r\n - \r\n\r\n\r\n
TF Card
\r\n1* MicroSD (TF)
\r\nUp to 64G
\r\n \r\n - \r\n\r\n\r\n
Ports
\r\n4* USB Type A port
\r\n1* RJ11 serial port
\r\n1* RJ12 cash drawer port
\r\n1* RJ45 LAN port
\r\n1* Audio jack
\r\n1* Power port
\r\n1* Micro USB debug port
\r\n \r\n - \r\n\r\n\r\n
Power Adapter
\r\nInput: AC100~240V/1.7A
\r\nOutput: DC24V/2.5A
\r\n \r\n - \r\n\r\n\r\n
Dimensions (L*W*H)
\r\n294*303*107mm
\r\n \r\n - \r\n\r\n\r\n
Total Weight
\r\n2.0Kg
\r\n \r\n - \r\n\r\n\r\n
Environment
\r\nOperating temperature: 0°C~40°C
\r\nStorage temperature: -20°C~60°C
\r\n \r\n
